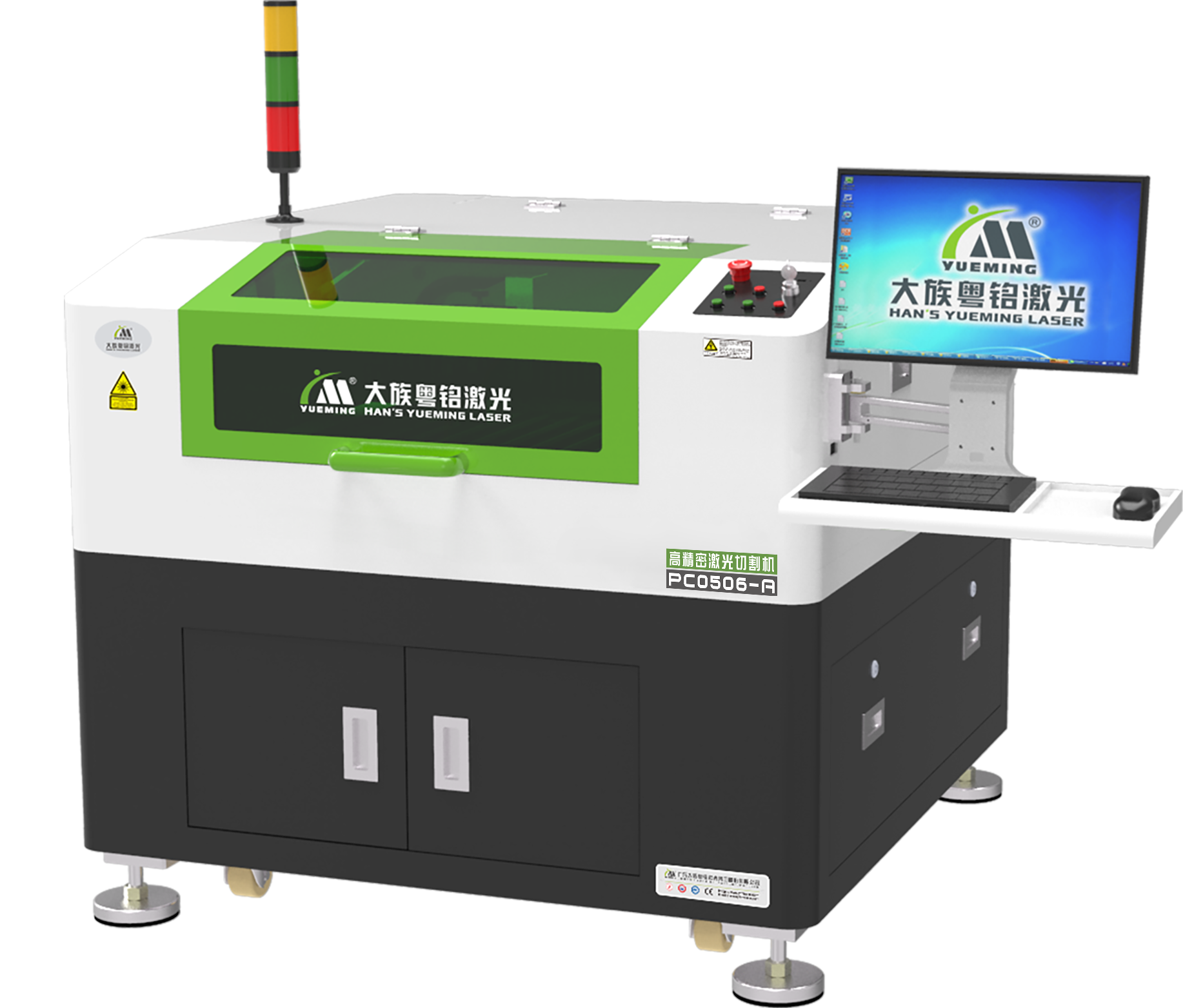

High Precision CO2 Laser Cutting Machine Series PC0506-A

High Precision CO2 Laser Cutting Machine Series PC0506-A

Introduction

The high- inertia servo motors ensure the maximum acceleration is 1G Reinforced welding bed, high-rigid crossbeam Imported laser source ensure the good spot quality Stable output power and low maintenance cost The self-developed laser cutting software with powerful graphics processing Special smoke exhaust system strong smoke suction and effective separation of waste material

Inquiry

Sample

GDF membrane
Plastic mold
Touch screen PET
Polarizer
Parameter

Parameter

  • Modle
    PC0506-A
  • Laser power(W)
    30~150
  • Working area(mm)
    500*600
  • Overall dimension(mm)
    1300*1350*1200
  • Weight (kg)
    850
  • Max moving speed (mm/s)
    1000
  • Gross power (kW)
    7
  • Supply voltage(m/min)
    Single-phase 22V 35A,50Hz
  • Working environment
    Temp:10~30℃ Humidity:40~80%

Feature

  • Use the dual servo motor drive and gantry structure; the high- inertia servo motors ensure the maximum acceleration is 1G;
  • Reinforced welding bed, high-rigid crossbeam, with high- precision marble platform, effectively ensure high dynamic rigidity of the machine tool system;
  • Imported laser source and optical devices ensure the good spot quality, stable output power and low maintenance cost;
  • The self-developed laser cutting software integrates the performance of excellent motion contro l and the function of powerful graphics processing;
  • Special smoke exhaust system with unique design, strong smoke suction and effective separation of waste material.
