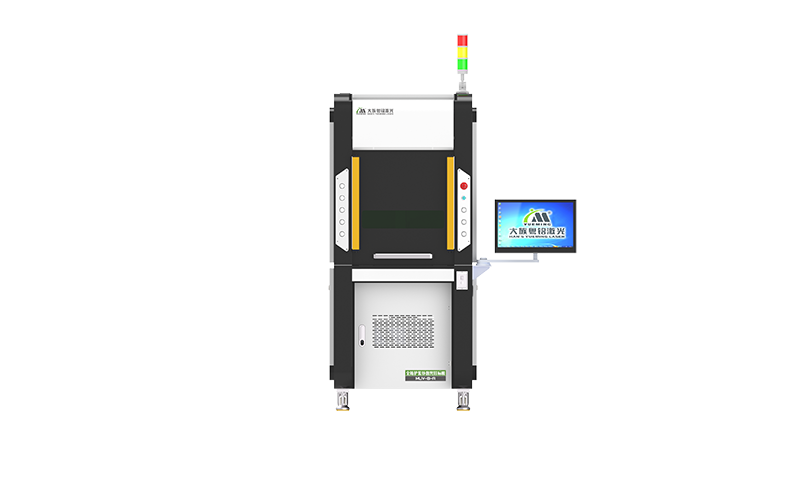

Han’s Yueming Full Protection UV Laser Marking Machine Series MUV-B-A

Han’s Yueming Full Protection UV Laser Marking Machine Series MUV-B-A

Introduction

The multi-station indexing table (2/4 stations optional) enables simultaneous marking and loading/unloading, significantly boosting productivity.
The fully enclosed marking area ensures operator safety and compliance with environmental standards.
Imported core components deliver stable performance and long lifespan; the ultra-fine focused spot enables high-precision marking on diverse materials.
Our self-developed marking control software offers robust functionality, an intuitive interface, and easy operation for quick onboarding.

Inquiry

Sample

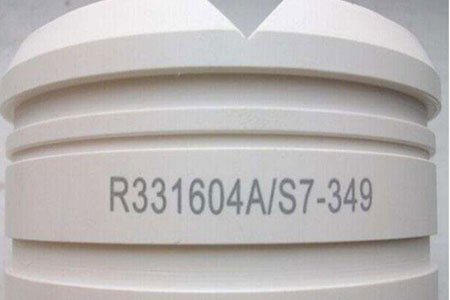

Ceramic marking

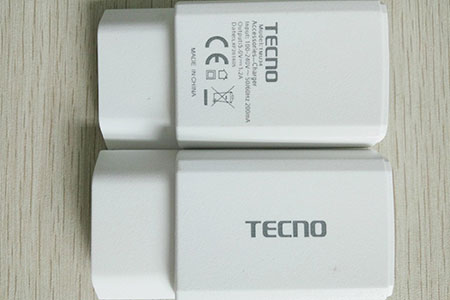

charger marking

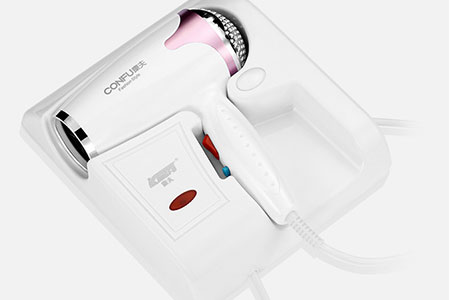

Hair dryer marking

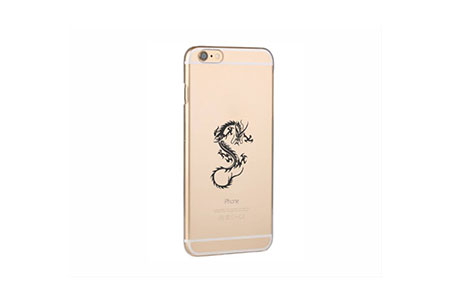

Mobile phone shell marking
Parameter

Parameter

  • Model
    MUV-B-A
  • Laser power
    3/5/10/15W
  • Working area
    100*100mm 150*150mm 200*200mm
  • Overall dimension
    750×1200 ×1950mm
  • Weight
    250kg
  • Repeated positioning accuracy
    ±0.005mm
  • Gross power
    1.6kW
  • Supply voltage
    AC220±10%50/60Hz
  • Model
    MUV-B-B
  • Laser power
    3/5/10/15W
  • Working area
    100*100mm 150*150mm 200*200mm
  • Overall dimension
    820*1600*1800mm
  • Weight
    300kg
  • Repeated positioning accuracy
    ±0.005mm
  • Gross power
    1.6kW
  • Supply voltage
    AC220±10%50/60Hz

Feature

  • The rotary worktable can be 2 or 4 stations, suitable for various products, High efficiency for loading & unloading and laser marking at the same time;
  • Full enclosed working area, safe and reliable;
  • Machine equips with motorized lifting system to achieve autofocus, easy for operation, and can cooperate with robot for loading and unloading to achieve automation production;
  • Fine laser spot, applied to various materials, and make perfect marking quality;
  • Imported core parts, good performance, long term stable running;
  • Small space occupation, easy for operation;
  • Self-developed control software, friendly HMI, easy for operation.
