3D Five-axis Laser Cutting Machine

Model

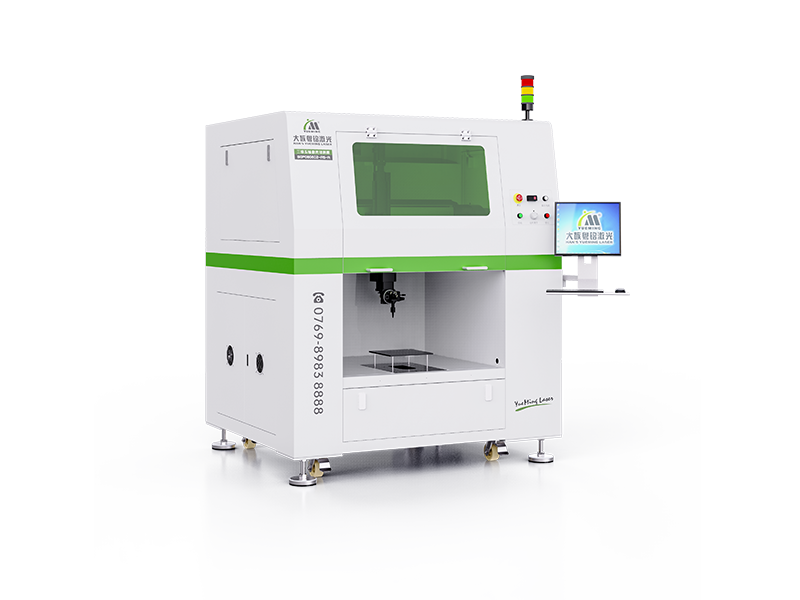

3D Five-Axis Laser Cutting Machine SGF080602-A5-A

3D Five-Axis Laser Cutting Machine SGF080602-A5-A

Introduction

Can realize complex surface.High-speed cutting of three-dimensional parts. Overhead gantry double drive structure, high precision screw. Cutting head has auto-focus and fast piercing,greatly improve the productivity. Automatic generation of machining trajectories for offline simulation of machining. Automatically check and solve collision and singularity problems, etc. Without operating multiple software, accuracy and stability of equipment operation are higher.

Sample

Auto door panel cutting

VR Eye Mask cutting

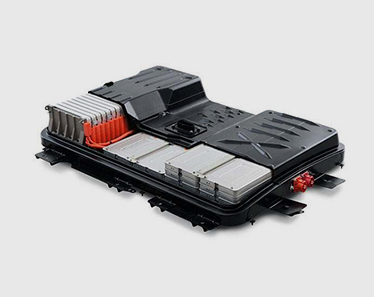

Battery seal cover cutting

Air conditioning plastic parts cutting

Parameter

Parameter

Modle

SGF080602-A5-A
Laser power（W）

80~130
XYZ stroke(mm)

750*600*200
Overall dimension(mm)

1650*1650*2250
Total mass (host)

1
Max speed of air travel (m/s)

0.5
Equipment power

Approx 6.5KW (according to 80W laser tube)
Supply voltage(m/min)

380V/50Hz
Working environment

Temp:5-40℃ Humidity:5~80%

Feature

Adopt professional 3D five-axis CNC system, which can realize complex surface,high-speed cutting of three-dimensional parts；
Overhead gantry double drive structure, more stable than the boom robot faster positioning speed, higher precision and better dynamic performance；
The maximum range of X, Y , Z -axis is 750mm*600mm*200mm, there is enough processing space to meet the processing needs；
Without operating multiple software, accuracy and stability of equipment operation are higher, the efficiency is faster, and the anti-interference is strong；
Optional double station rotary table for small format products double station sliding table or single-station rotary table.
