Full Enclosed Fiber Laser Cutter CMH1530-CH-A

Full Enclosed Fiber Laser Cutter CMH1530-CH-A

Introduction

The machine tool adopts gantry type double rack and pinion, double servo motor drive, high torque and high inertia output, which effectively improves the production efficiency of the equipment; The whole machine adopts a fully enclosed outer protection design , which can effectively protect the work safety of equipment operators; Classic applications - laser cutting of metal cabinets, laser cutting of stainless steel thick plates, etc.

Inquiry

Sample

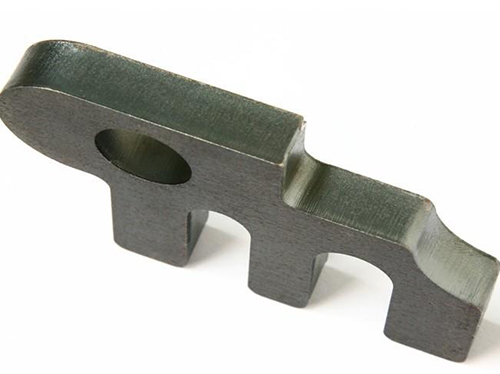

Carbon Steel cutting
Metal cabinet cutting
Metal guide cutting
Metal wall cutting
Parameter

Parameter

  • Modle
    CMH1530-CH-A
  • Working area(mm)
    1500×3000
  • Laser power
    Standard version :2000~4000W High version :6000~12000W
  • Maximum speed
    Standard version :100m/min High version :120m/min
  • Positioning accuracy(mm/m)
    ±0.03
  • Repeated positioning accuracy(mm/m)
    ±0.02
  • Weight(S)/(H)
    6500/7500kg
  • Overall dimension(mm)
    8700×2900×2500
  • Working environment
    Temp:0~45°C Humidity:≤80% Clean
  • Modle
    CMH2040-CH-A
  • Working area(mm)
    2000×4000
  • Laser power
    Standard version :2000~4000W High version :6000~12000W
  • Maximum speed
    Standard version :100m/min High version :120m/min
  • Positioning accuracy(mm/m)
    ±0.03
  • Repeated positioning accuracy(mm/m)
    ±0.02
  • Weight(S)/(H)
    9000/10500kg
  • Overall dimension(mm)
    10900×3340×2650
  • Working environment
    Temp:0~45°C Humidity:≤80% Clean
  • Modle
    CMH2560-CH-A
  • Working area(mm)
    2500×6000
  • Laser power
    Standard version :2000~4000W High version :6000~12000W
  • Maximum speed
    Standard version :100m/min High version :120m/min
  • Positioning accuracy(mm/m)
    ±0.03
  • Repeated positioning accuracy(mm/m)
    ±0.02
  • Weight(S)/(H)
    12000/ 13500kg
  • Overall dimension(mm)
    14900×4100 ×2630
  • Working environment
    Temp:0~45°C Humidity:≤80% Clean
  • Modle
    CMH1530-CH-B
  • Working area(mm)
    1500×3000
  • Laser power
    Standard version :2000~4000W High version :6000~12000W
  • Maximum speed
    Standard version :100m/min High version :120m/min
  • Positioning accuracy(mm/m)
    ±0.03
  • Repeated positioning accuracy(mm/m)
    ±0.02
  • Weight(S)/(H)
    6700Kg(body only)
  • Overall dimension(mm)
    8400×2280 ×2260
  • Working environment
    Temp:0~45°C Humidity:≤80% Clean

Feature

  • Rack and pinion transmission system, dual-servo drive, effectively improve the equipment production efficiency;
  • Enclosed protection cover to prevent the dust and fume go outside, ensure the operator could have a friendly working environment;
  • The equipment enjoy power failure memory; retreat cutting; automatic fault alarm and emergency stop; fault info auto-display;
  • Auto-focus head, Flexible piercing technique, support auto change focal position in piercing, suitable for thick metal plate processing;
  • Machine tool: 8-meter and/or 16-meter gantry milling, 600℃ heat treatment , 24 hours cooling inside the furnace to ensure the steel welded joint stress relief, then guarantee the machine tool long term accuracy and stability.;
  • Powerful algorithm engine of high efficiency and production rate; no limit of sheet and parts quantity in nesting; support manual and automatic nesting; support free form sheet nesting.
  • Model: CMH1530-CH-B Can be load in to the 40HQ
